Phase 5:
App Data Simulation

Resilient rendering of app-like metafields across cards & PDP

WinSport Theme · app_data Namespace · Defensive Coding

Why App Data?

Touchpoints

Metafield Keys

Errors If Removed

Shopify apps (reviews, badges, subscriptions) store data as metafields in their own namespaces. Themes must render this data across multiple surfaces — and survive gracefully when the app is uninstalled and its data disappears.

custom.*

Phase 4 — Store-owned

Metafields defined by the store (care_instructions, difficulty_rating, is_new_arrival). Controlled by the merchant.

app_data.*

Phase 5 — App-owned

Metafields that simulate an external app (badge text, certifications JSON). May disappear if app is uninstalled.

3 Metafield Keys

boolean

badge_enabled

Controls whether the badge is visible on product cards in collections

Surface: Collection cards

single_line_text

badge_text

Custom badge text — “Best Seller”, “Pro Pick”, “Award Winner”

Surface: Collection cards

Best Seller

json

extra_info

Structured object with warranty, origin, and certifications array

Surface: PDP

Warranty 2 years

Certifications CEISO 9001

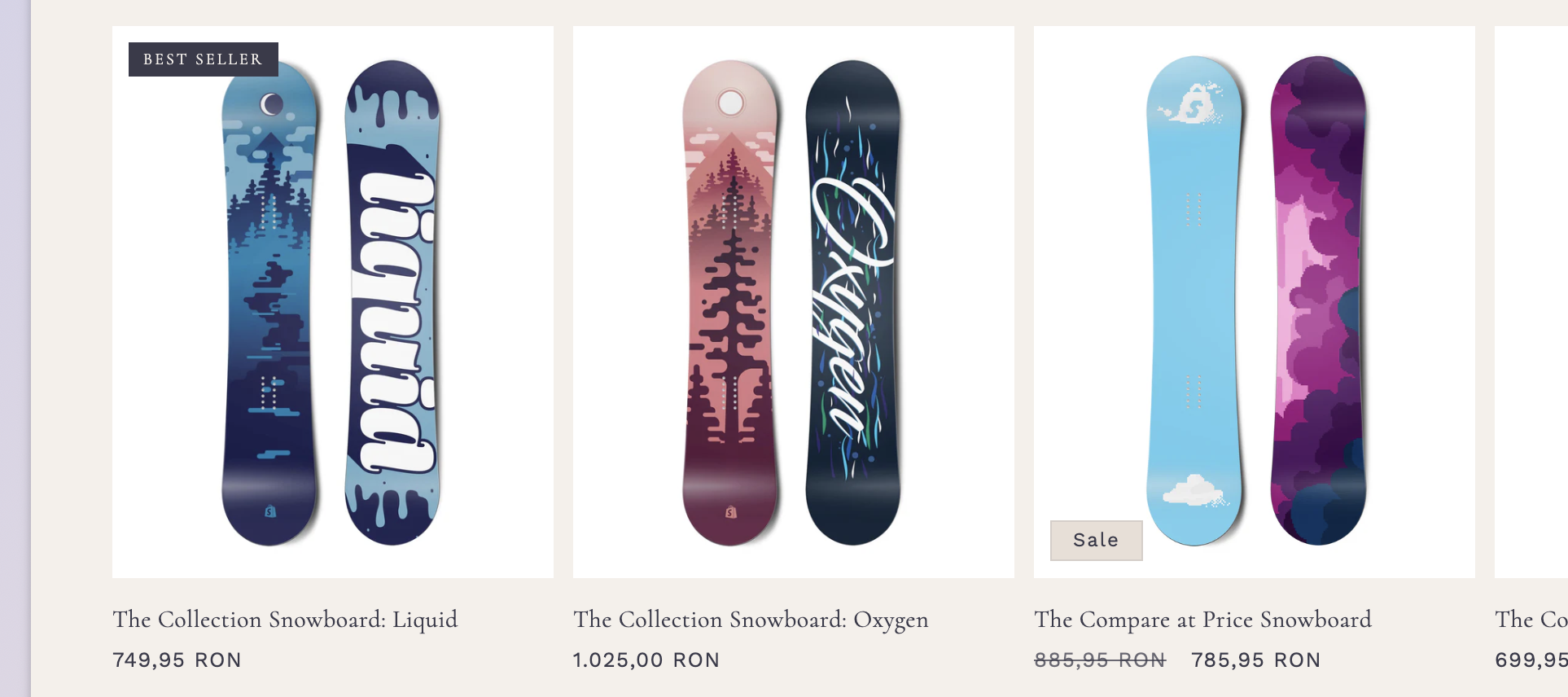

Collection Badge

Card with App-Data Badge

Badge reads app_data.badge_enabled — must be true
Text from app_data.badge_text — must be non-blank
Positioned top-left overlay, separate from Shopify’s Sale/Sold Out badges
Double-guard: enabled check first, then text check — either missing = no output

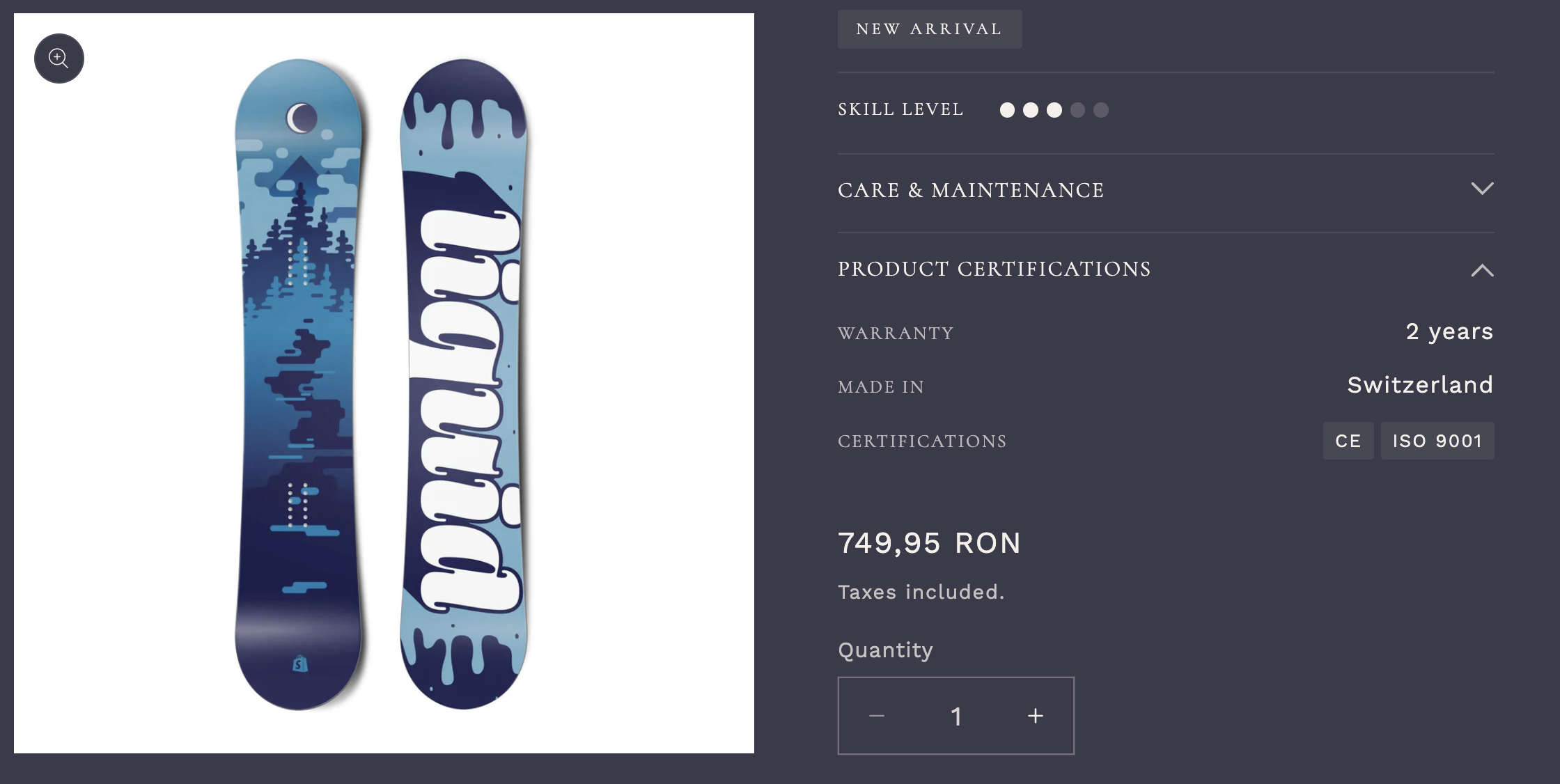

PDP Certifications

Collapsible Certifications Section

Reads app_data.extra_info as JSON
Each key checked independently: warranty, origin, certifications[]
Certifications rendered as pill tags via for cert in app_info.certifications
Collapsible accordion matching Phase 4 design pattern

Admin Setup

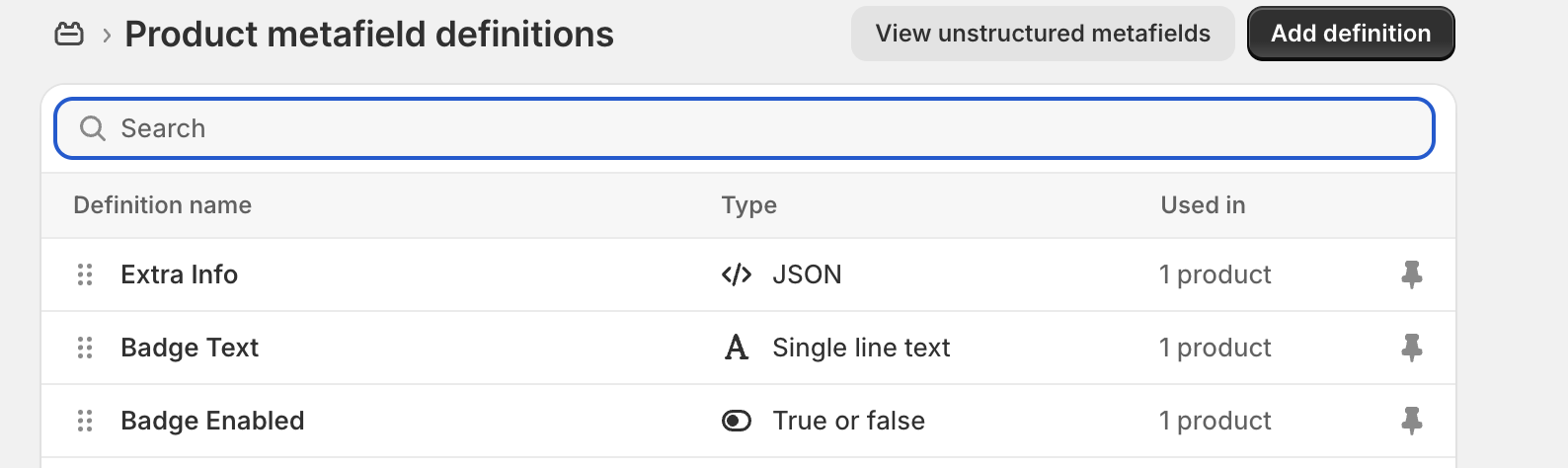

Metafield Definitions

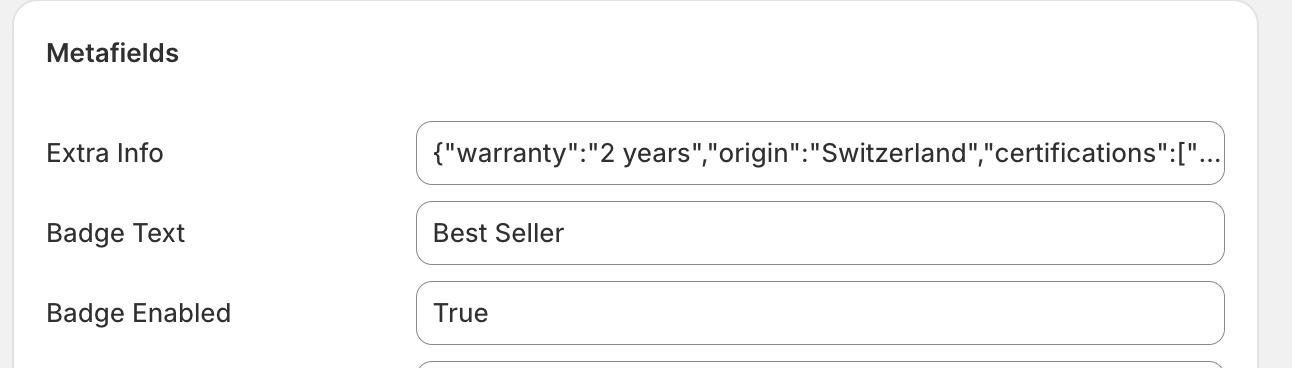

Product Values

Code Highlights

          {# Card badge — double guard: enabled + text #}

          {%- assign app_badge_enabled = card_product.metafields.app_data.badge_enabled.value -%}

          {%- if app_badge_enabled == true -%}

            {%- assign app_badge_text = card_product.metafields.app_data.badge_text.value -%}

            {%- if app_badge_text != blank -%}

              <span class="card__app-badge">{{ app_badge_text | escape }}</span>

            {%- endif -%}

          {%- endif -%}

          {# PDP — JSON keys checked independently #}

          {%- assign app_info = product.metafields.app_data.extra_info.value -%}

          {%- if app_info != blank -%}

            {%- if app_info.warranty != blank -%} … render warranty {%- endif -%}

            {%- if app_info.origin != blank -%} … render origin {%- endif -%}

            {%- if app_info.certifications != blank -%}

              {%- for cert in app_info.certifications -%}

                <span class="cert-tag">{{ cert | escape }}</span>

              {%- endfor -%}

            {%- endif -%}

          {%- endif -%}

Key Takeaways

Separate namespace — app_data.* vs custom.* mirrors real app architecture
Multi-surface rendering — same data flows to collection cards AND PDP
JSON metafield — structured data parsed natively by Shopify, each key accessed independently
Defensive at every level — namespace, key, and nested keys all checked before rendering
App-uninstall safe — if all app_data metafields are removed, zero output, zero errors

WinSport Theme · Phase 5 Complete · Dawn v15.4.1 · Shopify 2.0
